Dynafile III Abrasive Belt Tool

Quantity per box : 1

.7 hp, 7 Degree Offset, 20,000 RPM, Front Exhaust, for 1/4"-1" W x 18" L (6-25 mm x 457 mm) Belts
Read more ...

Ref  : 15300

Unit price (VAT EXCLUDED)

1 204 VAT Excluded
In stock

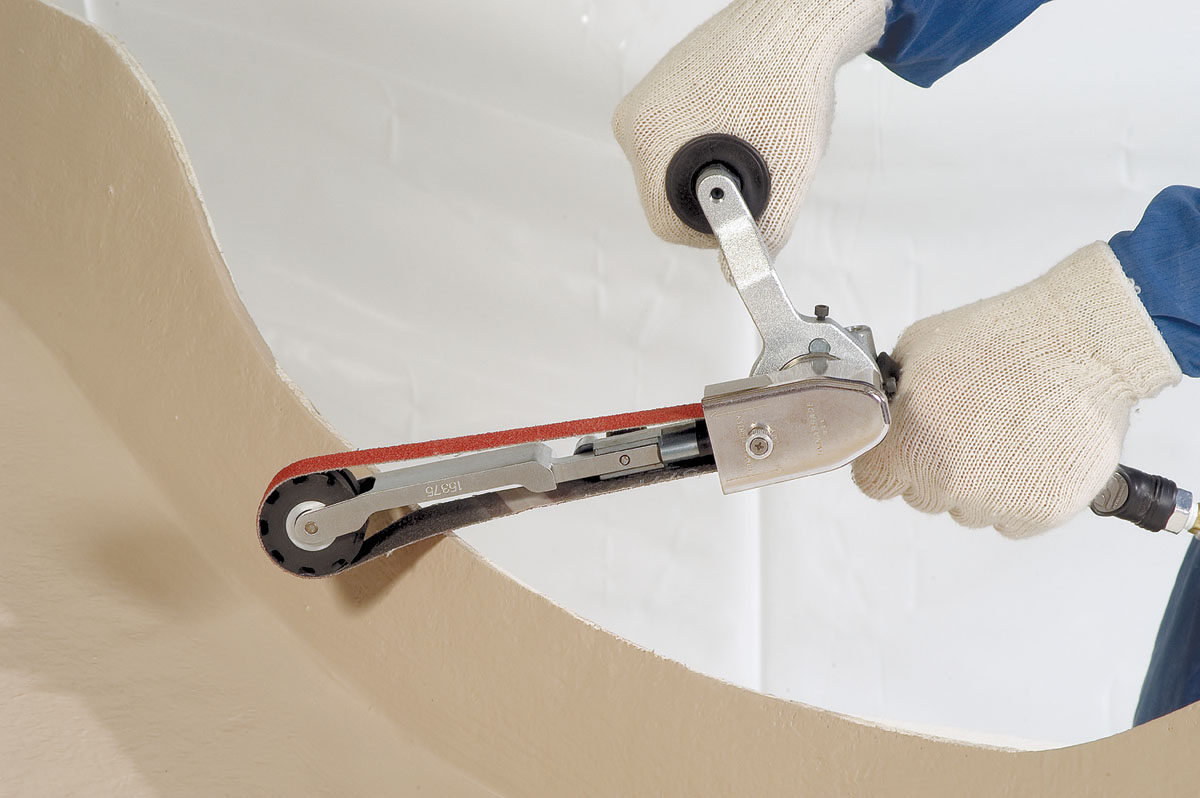

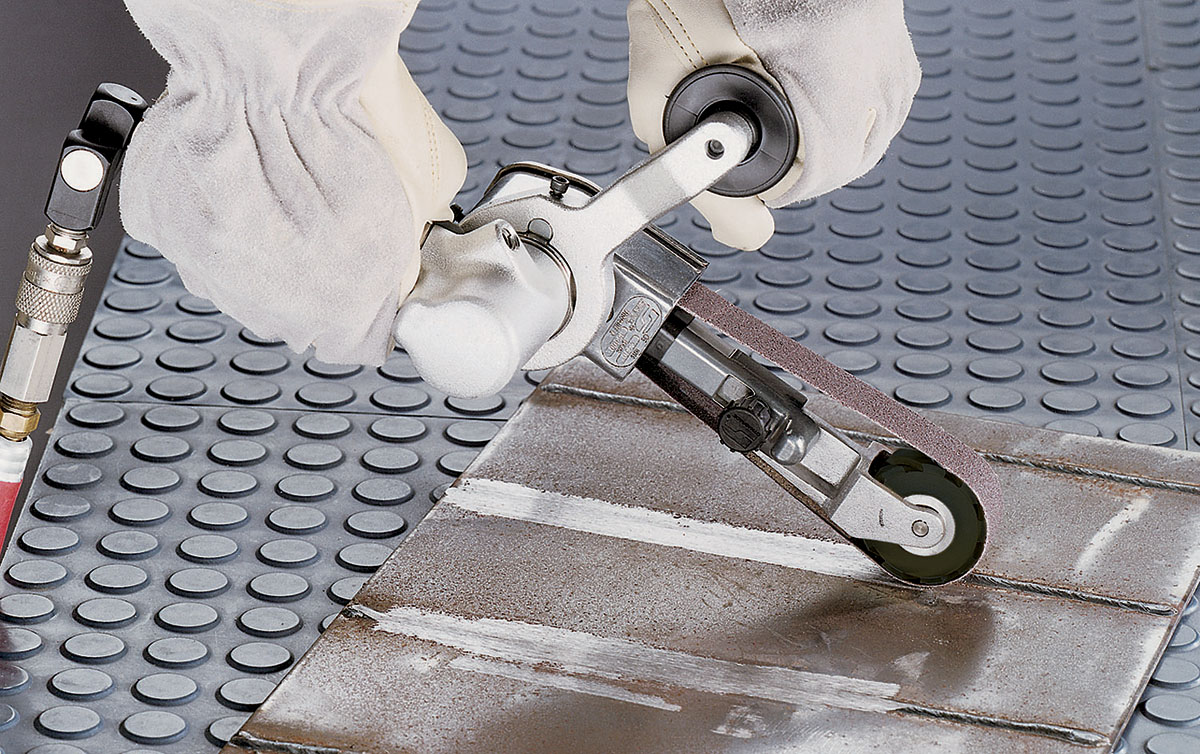

  • Excellent for grinding welds, blending and deburring. Dynafile III Abrasive Belt Tool offers all the versatility of our world-famous Dynafile II, while serving up more power (.7 hp / 522 W) for faster material removal.
  • Tool includes high-efficiency Rubber Drive Wheel, ideal for use with all abrasive belts.
  • Includes 15350 Contact Arm for 1" wide x 18" long abrasive belts. Tool grinding head pivots 360 degrees.
  • Soft grip handle assembly allows operator to apply additional force to contact wheel. Handle also offers enhanced control and maneuverability.
  • Optional safety-lock throttle lever is available.
  • Includes Plug Ref. 95675
Hp
  • 0.7 hp (522 W)
Max. RPM
  • 20000
Air Inlet Thread
  • 1/4" NPT
Hose I.D. [inches]
  • 1/4" (6 mm)
Vacuum Type
Air Pressure
  • 90 PSIG (6.2 Bar)
Max. Air Flow [SCFM]
  • 32 SCFM (906 L/Min)
Max. SFPM [inches]
  • 4550 (1382 SM/Min)
Exhaust Type
Item Weight [kg]
  • 1.5795
Max. SM/Min
  • 1386.84
Tool Style
Quantity per Box
  • 1
AUTO AFTERMARKET / DETAILING
  • Y
Sound Level
Tool Weight
Tool Length
Housing Material
Abrasive Size
Tool Height
